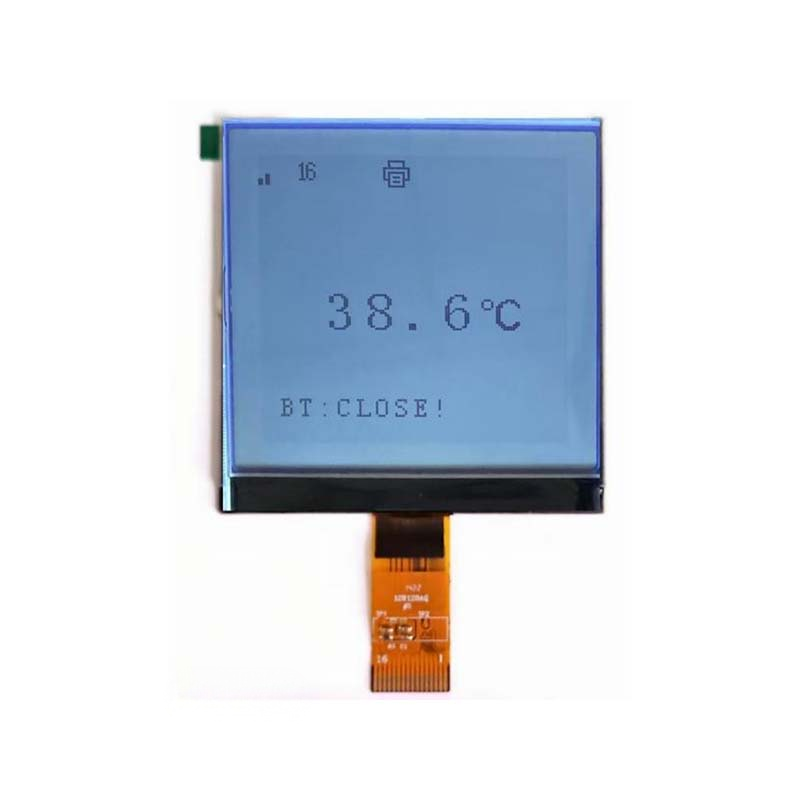

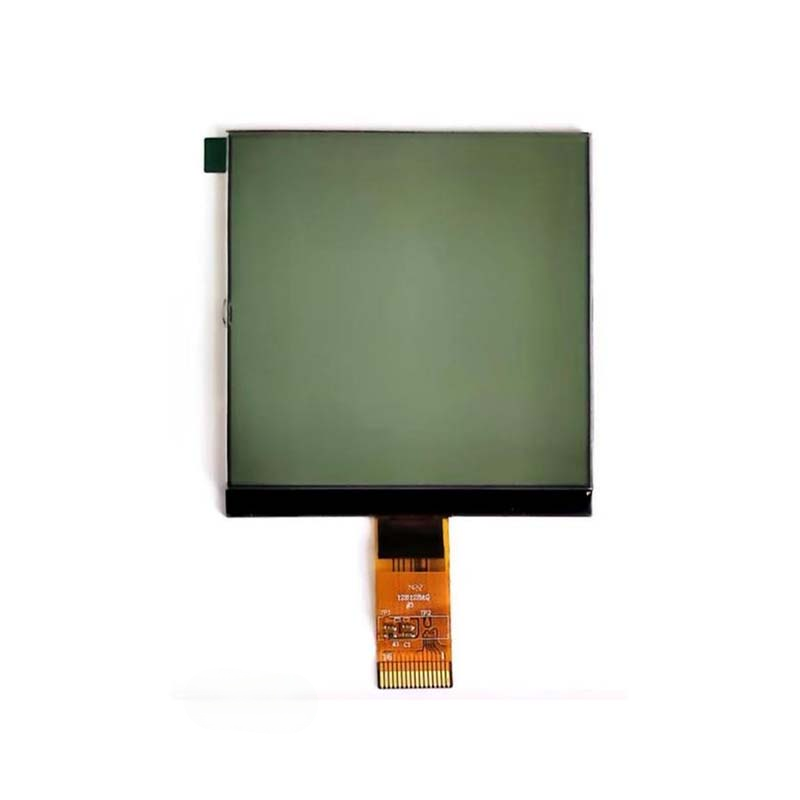

This product is a 128×128 LCD dot matrix display capable of displaying graphics at 128 columns × 128 rows of pixels. The display adopts FSTN mode, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver IC and is manufactured using the COG (Chip-on-Glass) process, resulting in a thin, lightweight product with low power consumption. It connects to a host MCU via an SPI interface or an 8-bit parallel LCD interface, and is used for displaying various images and text.
This product is a 128×128 LCD dot matrix display capable of displaying graphics at 128 columns × 128 rows of pixels. The display adopts FSTN mode, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver IC and is manufactured using the COG (Chip-on-Glass) process, resulting in a thin, lightweight product with low power consumption. It connects to a host MCU via an SPI interface or an 8-bit parallel LCD interface, and is used for displaying various images and text. This type of graphic dot matrix LCD module (LCM) is available in other resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, 320×240, etc. Customers can choose different combinations of LCD backlight and LCD panel according to product requirements, and customization is also available.
| Manufacturer | Eastern?Display |
| Product model | EDM128128-22 |
| Display content | 128x128 ?dot matrix display |
| Background | Gray |
| Interface | SPI interface/8-bit parallel LCD |
| Driver chip model | LCD?controller??UC1617SGAA |
| Module type | COG?LCD?Module |
| Connection | FPC |
| Display type | FSTN LCD，Positive，Transflective |
| Viewing angle | 6 O'clock |
| Operating voltage | 3V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -10~60℃ |
| Storage temperature | -20~70℃ |
Keywords：i2c oled display/ssd1306 oled display/oled display price/oled display 128x64/oled display module/raspberry pi oled display/0.96 oled display/small oled display/tiny oled display/esp32 oled display/round oled display/EDC20156DHC3P3/EDC22015SDC2P16/EDC24106VA?
vertical Alignment LCD achieves an ideal balance among display performance, manufacturing cost, and power consumption, thoroughly addressing the traditional pain points of poor visibility, narrow viewing angles, and outdated aesthetics. Its deep black background paired with bright white or colored characters delivers a premium “all-black when off, crystal-clear when on” appearance, while near-full viewing angles ensure that all information—such as remaining time and temperature—is easily visible from any perspective in the kitchen. Moreover, its ultra-low power consumption perfectly suits the long-term standby requirements of appliances like rice cookers, and as a mature industrial technology, its mold development costs and lead times effectively control mass production expenses. As a result, this display solution enhances modern aesthetics while precisely aligning with the minimalist design trends prevalent in today’s home appliances.
This customized segment code COG module features a TN LCD display integrated with driver chips using COG technology. The Transflective mode LCD panel is paired with LED backlighting, ensuring clear visibility in both bright and dim environments. It connects to the main MCU via a serial I2C interface through either a PIN or FPC connection. This LCD display module delivers low power consumption, a slim profile, excellent visual performance, stable operation, and cost-effective features.
This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m2. It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.
This product is a 4.3-inch TFT display specially designed for automotive instrument clusters. All materials used are automotive-grade, enabling stable operation in a wide-temperature environment from?-30°C to 85°C. The screen features a high brightness of?1000 cd/m2?and supports an?RGB interface, ensuring clear visibility even under direct strong light. Its full-viewing-angle characteristic guarantees that drivers can accurately read key driving information from any angle. It is widely used in applications such as automotive instrument panels, engineering machinery controllers, and integrated instrument systems.
This product is a 12864 LCD dot matrix display capable of showing graphics of 128 columns × 64 rows of pixels. The display uses an STN mode LED-backlit LCD, featuring black characters on a yellow-green background, high contrast, and a wide viewing angle. The module includes a built-in driver chip and adopts COG (Chip-on-Glass) manufacturing technology, resulting in a thin, lightweight product with low power consumption and a wide operating temperature range. It connects to a host MCU via an SPI interface and is used to display various images and text. The product comes with a metal frame for easy mounting and fixing.
This product is a 12864 LCD dot matrix display capable of showing graphics at a resolution of 128 columns × 64 rows of pixels. The display uses an STN yellow green mode LED backlit LCD, presenting black characters on a yellow green background with high contrast and a wide viewing angle. The module integrates a dedicated driver chip, adopts COB (Chip on Board) manufacturing process, and connects to a host MCU via an 8 bit parallel LCD interface for displaying various images and text. An internal compensation circuit ensures good display performance even over a wide temperature range.
STN LCD are widely used in detection instruments, display instruments, and regulation (control) instruments. They can meet the industrial instruments’ requirements for high precision, high reliability, and intelligence. At the same time, STN dot matrix displays can accommodate the needs of complex display content, such as showing adjustment parameters, setting alarms, and outputting control signals. STN segment displays are capable of multiplex drive and offer a wide viewing angle range. Paired with a 10mm-thick glass cover, they can be adapted for explosion-proof, dust-proof, and contamination-resistant environments, with an optional integrated touch function.
Fast response optical valve LCD can quickly change the light transmission state after receiving the signal, the response speed can reach 0.1 milliseconds (100 times faster than human blink); the product is thin and light, can achieve 1.2mm thickness; the connection can be made into pins or FPC; can block infrared, ultraviolet.
LCD segment displays are widely used, with some products deployed in extreme environments such as low temperature, high temperature, strong light, and high humidity. High-durability LCDs are designed to meet the demands of such harsh operating conditions.
VA LCD segment displays feature a black background with white characters, offering high contrast, a wide operating temperature range, broad viewing angles, and fast response times. They can be combined with color silk printing or color filter films to achieve TFT-like colorful display effects and can also be used in conjunction with TFT screens.

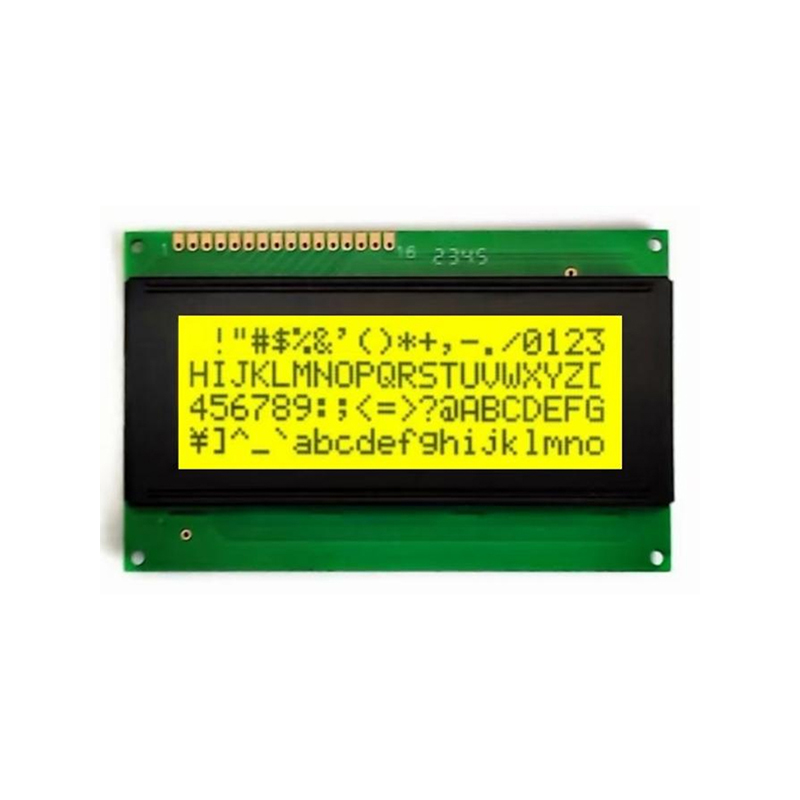

This product is an LCD 20×4 character dot matrix display module designed for displaying ASCII characters, featuring 4 rows with 20 characters per line. The screen utilizes an STN yellow-green mode LED backlit LCD, displaying yellow-green background with black characters, offering high contrast and a wide viewing angle. The module incorporates the ST7066 universal character driver chip, adopts COB production technology, and connects to the main control MCU via an 8-bit parallel LCD interface, ensuring ease of use.
