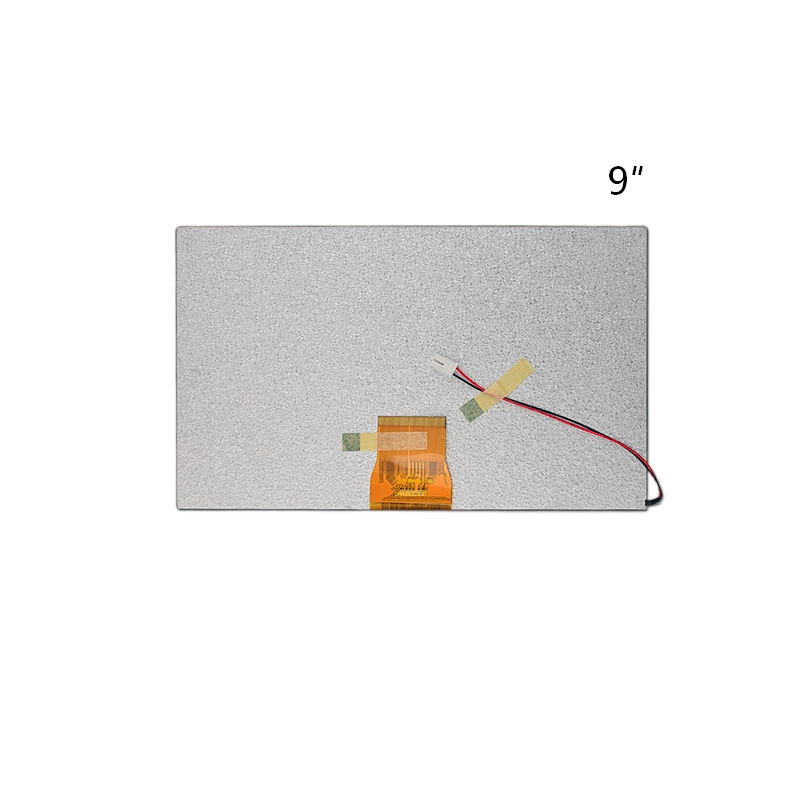

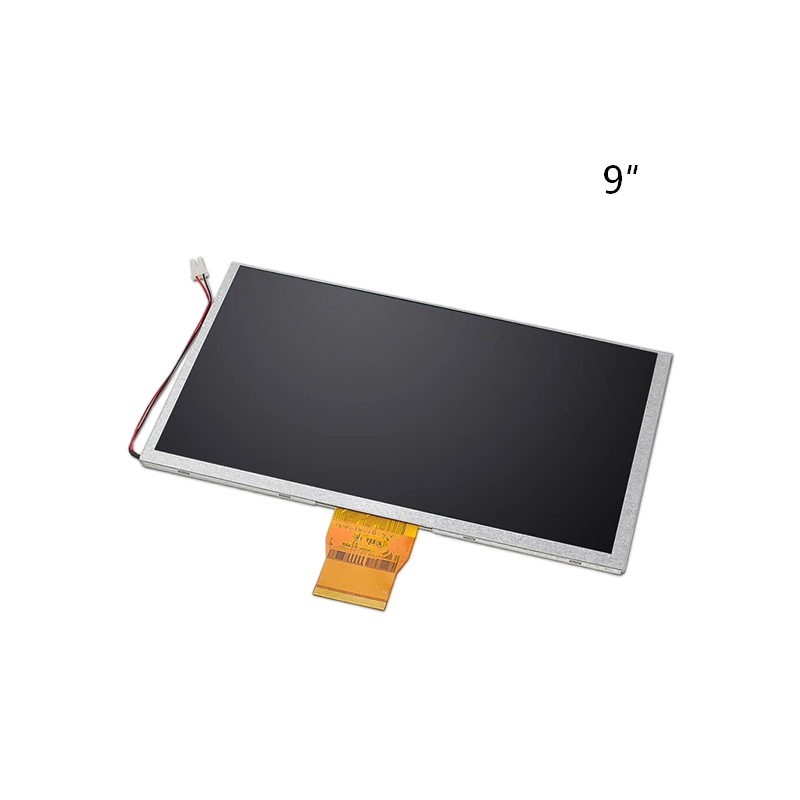

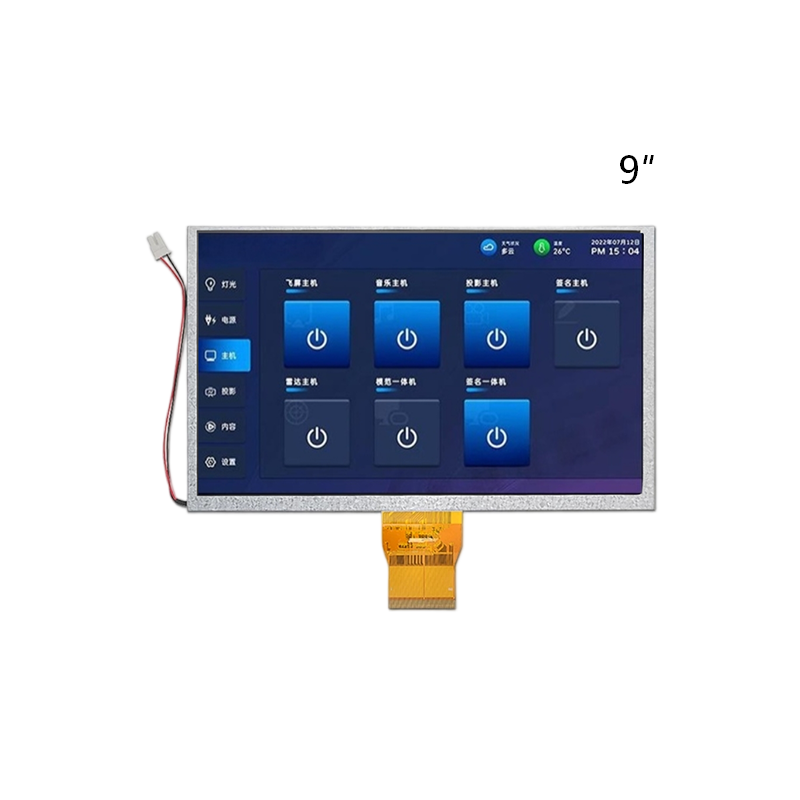

This 9.0-inch TFT display features a 1024×600 high-definition resolution, combined with a TN panel and a standard LVDS interface, offering excellent noise immunity and stable long-distance transmission. Its simple driver design significantly shortens product development and debugging cycles. With an operating temperature range of -30°C to 70°C, it is suitable for demanding applications such as industrial automation and construction machinery. The solution is cost-effective, widely applicable, and supports continuous stable supply for over five years, effectively reducing replacement and maintenance costs for buyers. Integrating reliability and economy, it is a worry-free choice for industrial equipment display solutions.
EASTERN DISPLAY ─ Your Global Display Solutions Expert
? Precise Adaptability
Full size coverage from 0.96" to 15.6", with resolution options ranging from 80×160 to 1920×1200. We offer over 200 standard models to choose from.
? Customization Services Available
We provide the following customized services:
1.Backlight brightness.
2.Cover glass thickness, shape, and material.
3.3A surface treatment (AF/AR/AG).
4.OCA full lamination.
5.Integrated structural housing.
6.CTP customization.
? Trusted by Cross-Border Customers
Serving customers in 20+ countries including China, Germany, the USA, Poland, and Japan, with over 5,000 custom TFT display solutions delivered.
? Strict Environmental Compliance
All products are RoHS and REACH certified.
| Manufacturer | Eastern Display |
| Product model | EDT090HSAND-03 |
| Resolution | 1024*600 |
| Interface | LVDS |
| Driver chip | HX8282A+HX8696 |
| Connection | FPC |
| Display type | 16.2M Color TFT display |
| Viewing angle | 12 o'clock |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 300cd/m2 |
| Operating temperature | -30-70℃ |
| Storage temperature | -30-80℃ |
| Cover | Customized services such as AF/AG/AR |
| Lifetime | 50000H |
Keywords：TFT display module/LCD TFT display module/TFT display 3.5 inch/TFT display 5 inch/3.5-inch TFT/7 inch TFT screen/amoled display/OLED display/oled display arduino/flexible oled display/transparent oled display/EDC7675DHC3P3/EDC180972SDC2P16/EDC22013VA?
