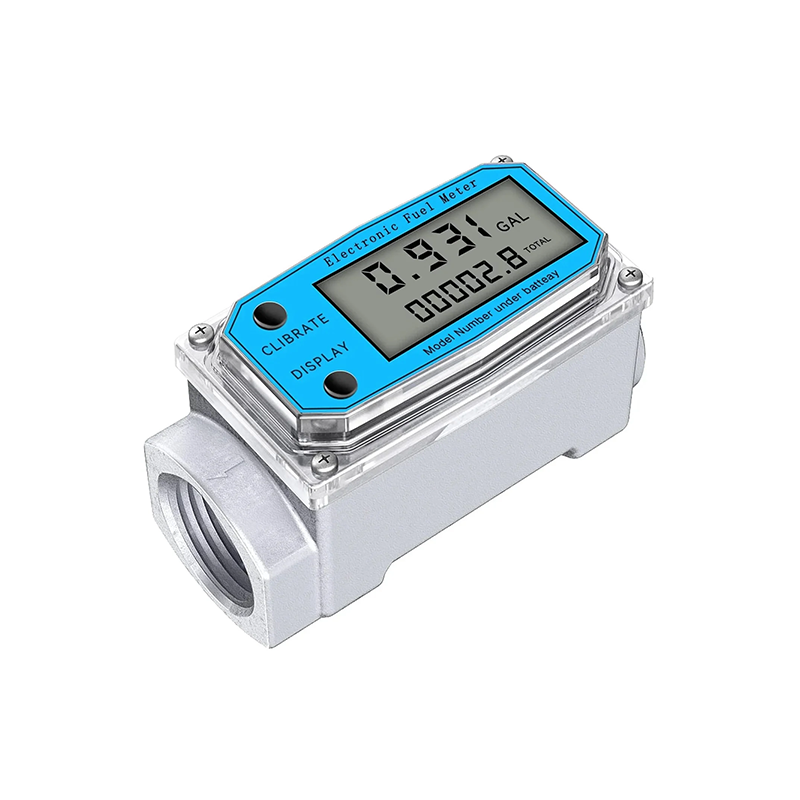

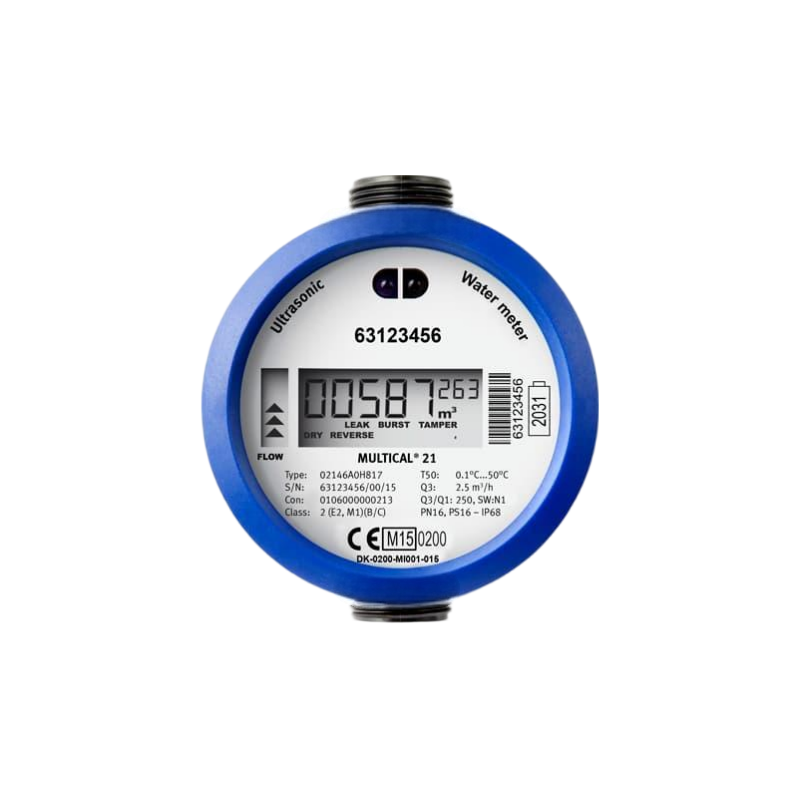

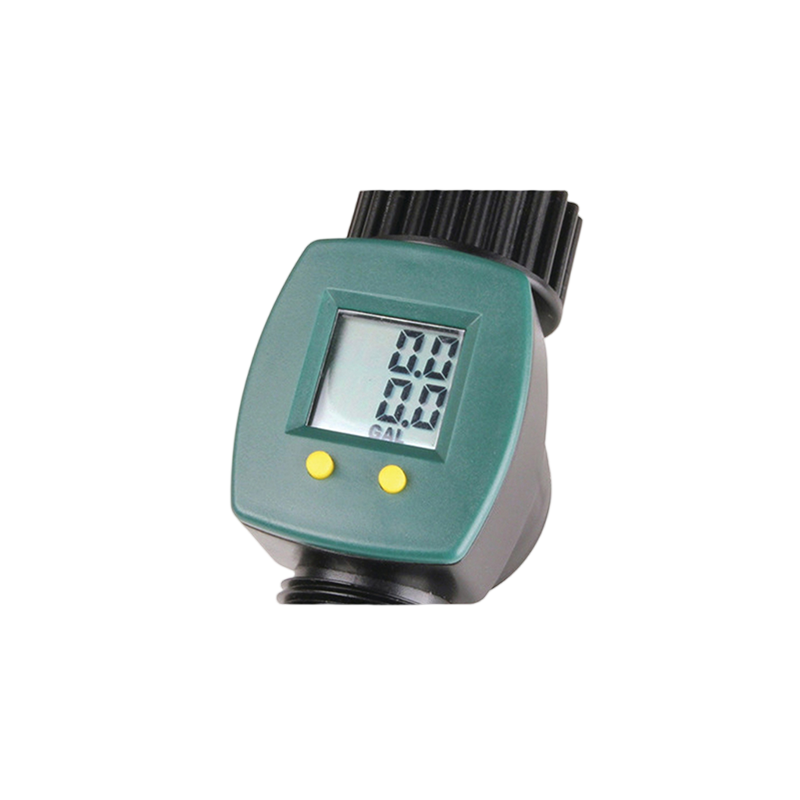

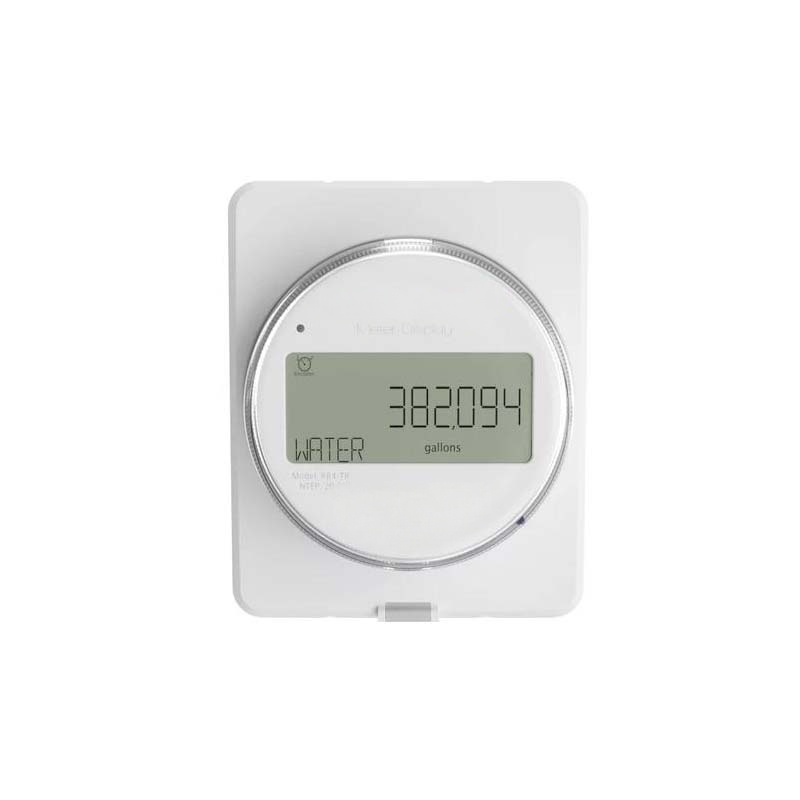

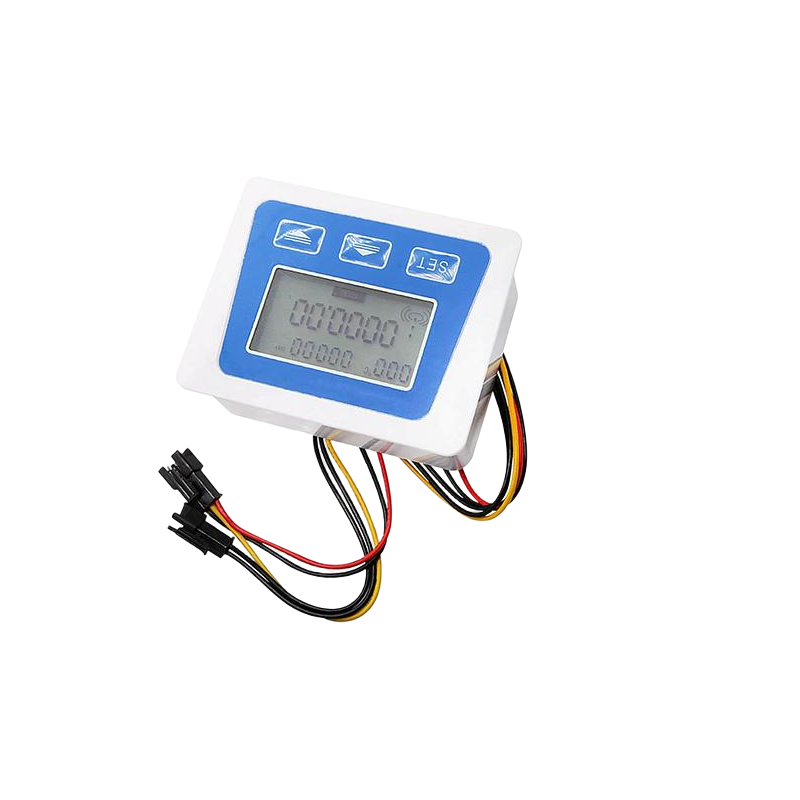

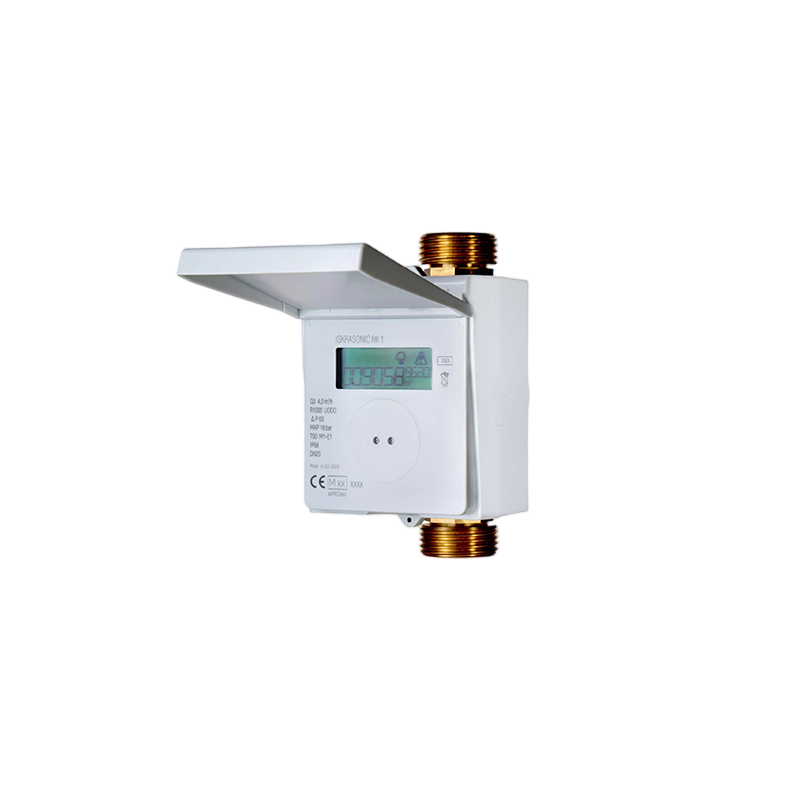

TN LCD is the optimal solution for European smart water meter display applications. Its core competitiveness lies in its unparalleled cost advantage and impeccable industrial-grade reliability.
TN LCD is the optimal solution for European smart water meter display applications. Its core competitiveness lies in its unparalleled cost advantage and impeccable industrial-grade reliability. TN LCD is the lowest-cost custom LCD product, offering an absolute cost-performance moat in I.O.T sensors and large-scale civil deployments. From the perspective of technical stability, it employs a static driving architecture, achieving stable operation for over 17 years with an ultra-low power consumption of less than 5 μA, perfectly matching the long-life requirements of battery-powered water meters. In terms of harsh climate adaptability, the mature TN solution features an ultra-wide operating temperature range of -40°C to +90°C and UV resistance, enabling it to reliably withstand extreme outdoor environments from Nordic freezing cold to Southern European scorching heat. It is precisely this combination of extremely low cost, high reliability, stable performance, and wide temperature adaptability that makes TN LCD the inevitable choice for European water meter manufacturers to achieve cost control, environmental adaptability, and long-term maintenance-free goals.
EASTERN DISPLAY has supplied hundreds of TN LCD models to customers in Italy, Germany, and other countries, with annual shipments exceeding one million units. We have accumulated extensive technical experience in product design, critical parameters, and applications. EASTERN DISPLAY is able to continuously and stably provide customers with high-reliability, low-cost TN LCDs.
| Manufacturer | Eastern?Display |
| Display mode | TN ?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V |
| Viewing angle range | 90-120° |
| Connection | PIN |
| Driver chip model | / |
| Backlight type/color | / |
| Operating temperature | -40℃-90℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100,000-200,000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Low cost LCD/Anti-UV |
