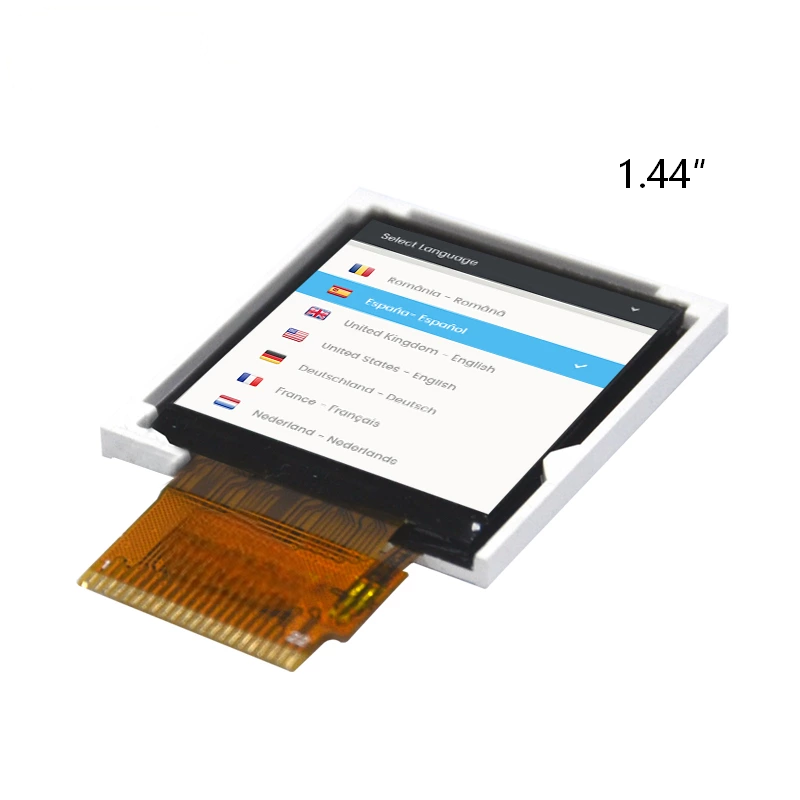

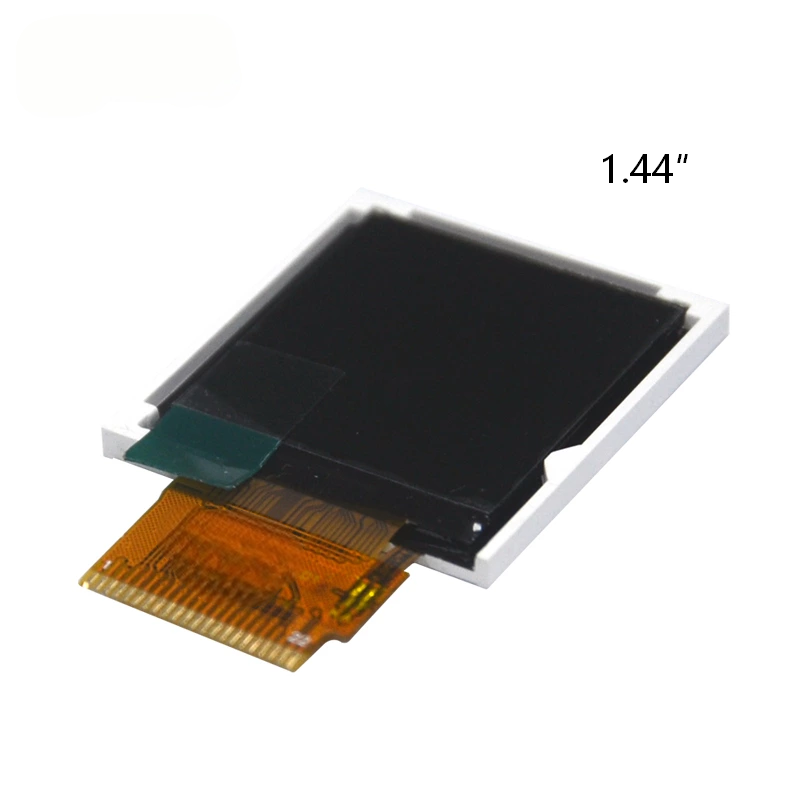

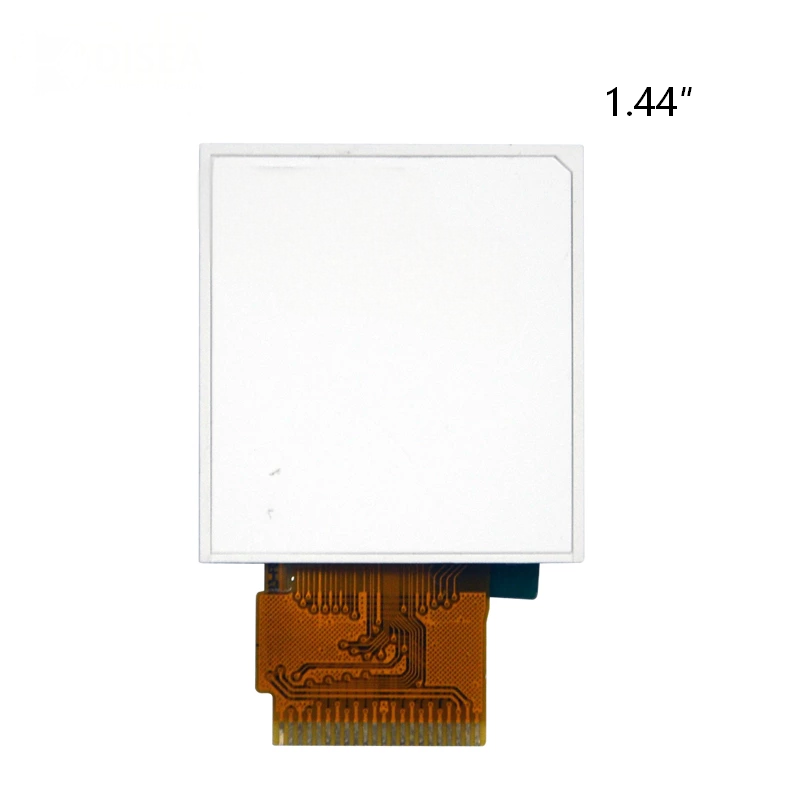

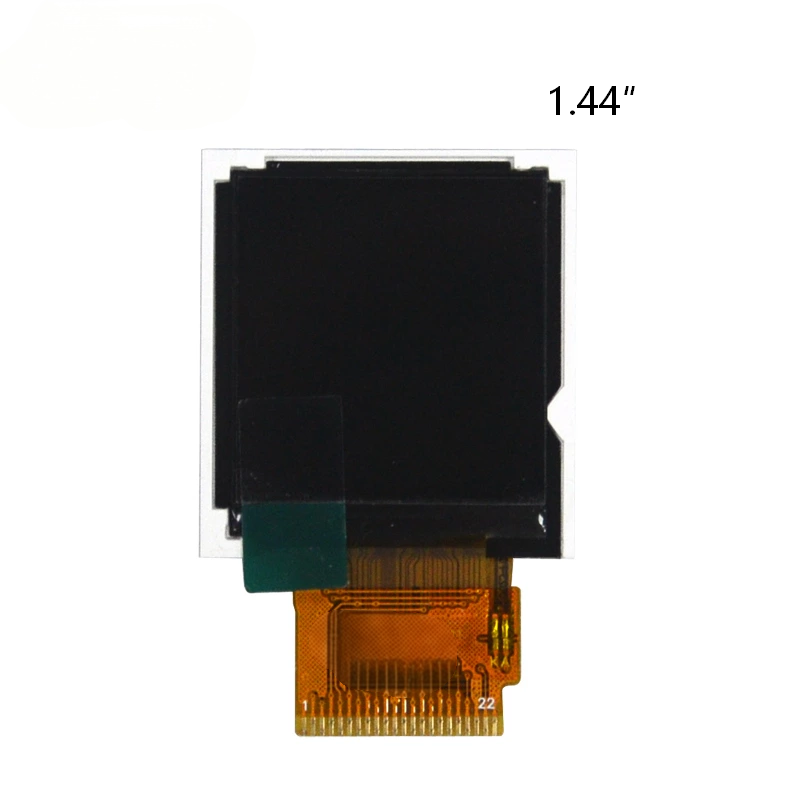

The 1.44-inch TFT display features a 128×128 resolution and an 8-bit MCU parallel interface. It offers simple driving and can be quickly integrated into mainstream microcontroller platforms. The TN panel, combined with a 6 o’clock viewing direction, delivers clear display performance. The operating temperature ranges from -20°C to 70°C, making it suitable for general indoor and semi-outdoor environments. Compact and small in size, it is ideal for applications such as handheld devices, smart home appliances, and instrumentation. Stable and reliable, it is an ideal choice for low-cost display solutions.
EASTERN DISPLAY — Global Display Solution Expert
? Precise Compatibility Capability
Full-size coverage from 0.96" to 15.6" is available, with resolutions ranging from 80×160 to 1920×1200. Our company offers over 200 standard products for selection.
? Customization Services Available
We can provide the following customization services for customers:
1. Backlight brightness
2. Cover glass thickness, shape, and material
3. 3A (AF/AR/AG) surface treatment processes
4. OCA full lamination
5. Integrated structural housing
6. Customizable CTP
? Trusted by Multinational Customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, and Japan, we have provided over 5,000 custom TFT display solutions.
? Strict Environmental Standards
All products are RoHS and REACH certified.
| Manufacturer | Eastern Display |
| Product model | EDT0144LSAND-01 |
| Resolution | 128*128 |
| Interface | 8BIT MCU |
| Driver chip | ST7735 |
| Connection | FPC |
| Display type | 262K?Color TFT display |
| Viewing angle | 6 ?o'clock |
| Operating voltage | 2.8 V |
| Backlight type | LED backlight |
| Backlight brightness | 200cd/m2 |
| Operating temperature | -20-70℃ |
| Storage temperature | -30-80℃ |
| Lifetime | 50000H |
