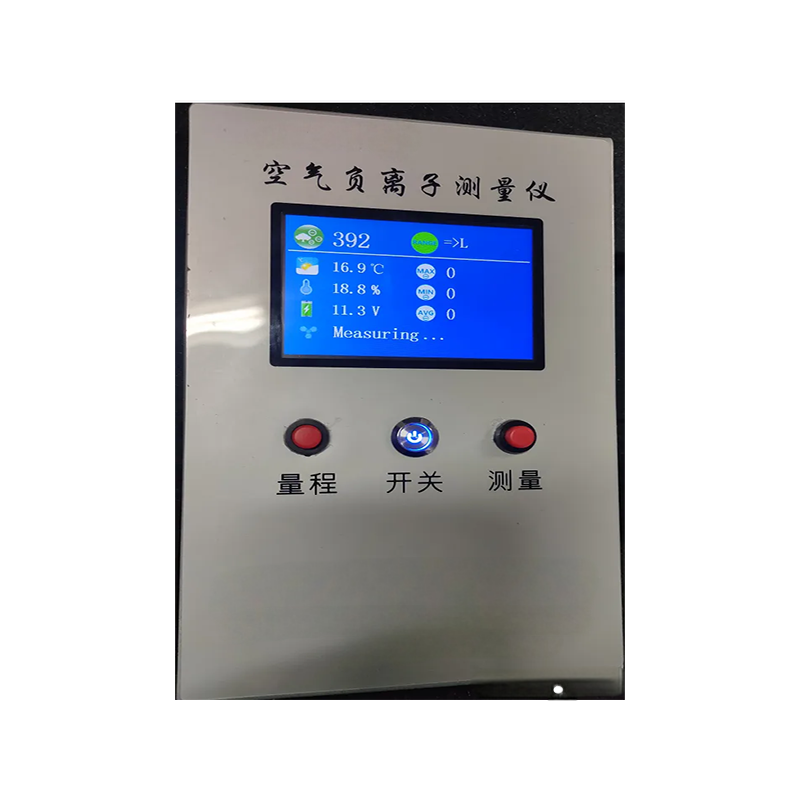

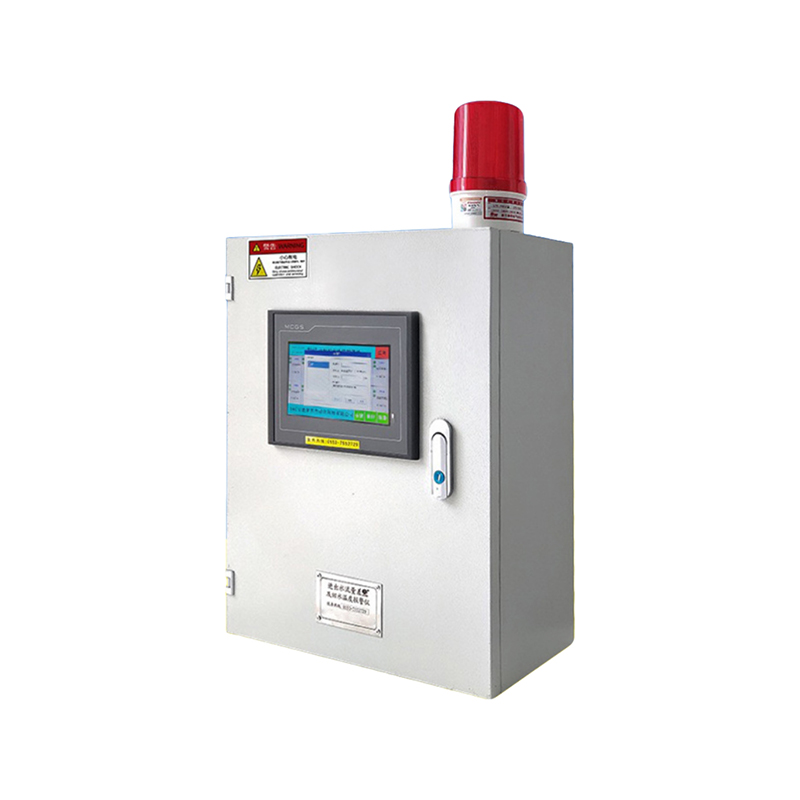

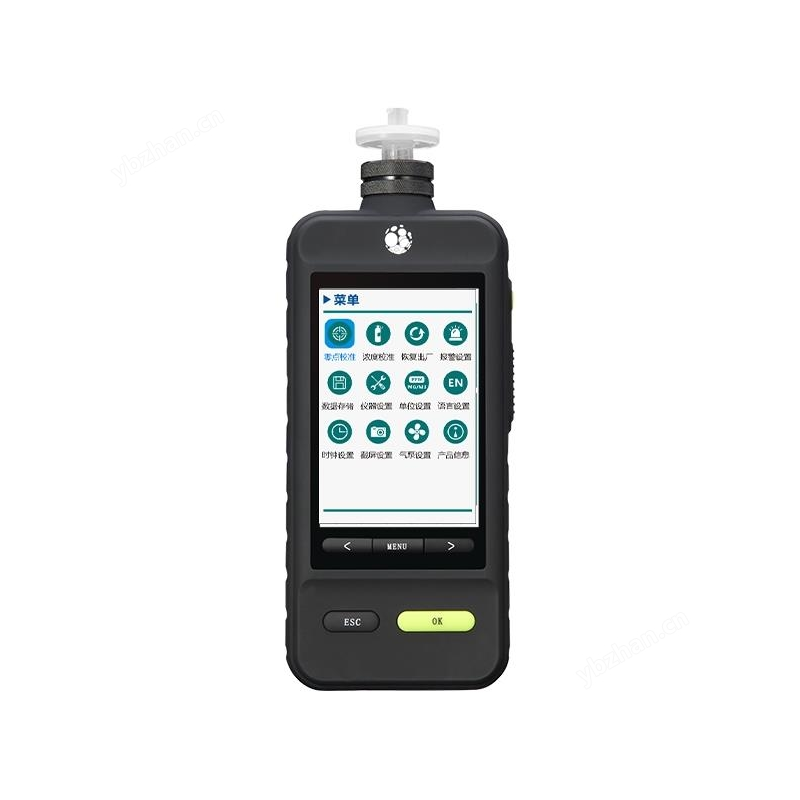

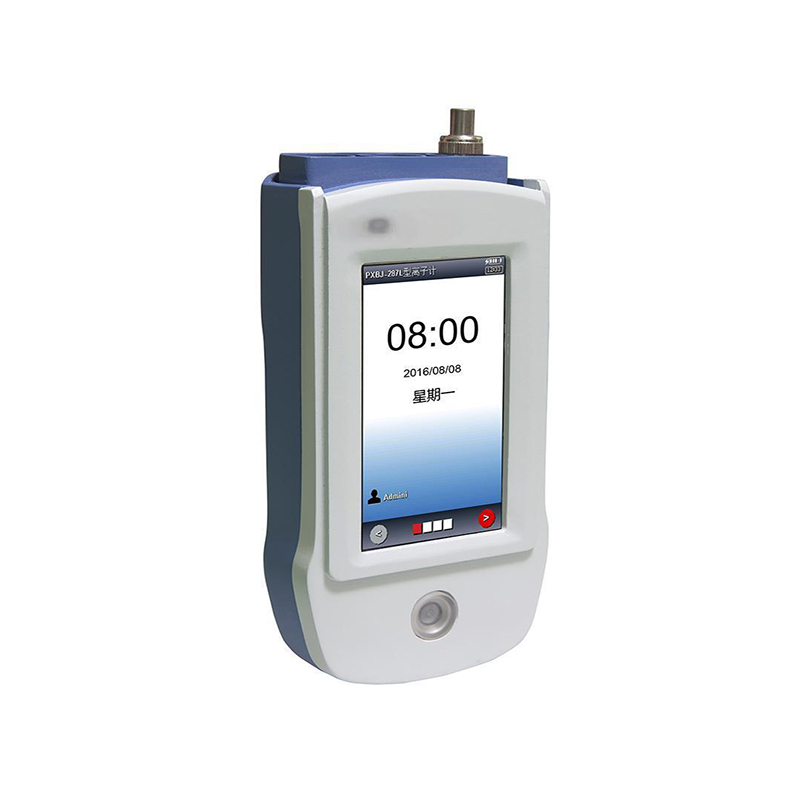

This product is an industrial instrument display, with a resolution of 800*480, RGB interface, 800cd/m2LED backlight, supporting wide temperature operation from-30℃ to 80℃, and compatible with complex electromagnetic environment. It is widely used in flowmeter, analyzer, VOC detector, balance, ionmeter and other industries.
EASTERN DISPLAY ─ Global display solutions expert
? Trusted choice for multinational customers
We serve customers in China, Germany, the United States, Poland and other 20+ countries, and provide customers with more than 1000 custom TFT display solutions
? Strict environmental standards
All products are certified by RoHS/REACH.
? Precision adaptation capability
Provides full size coverage of 2.0 "to 15.6" with resolution options from 240x320 to 1920x1080.
? Provide customized services:
We can provide customers with the following customized services:
1，Customized backlight brightness.
2，Plate thickness, shape and screen printing are optional.
3，Steel cover plate AR/AG/AF treatment.
4，OCA full lamination
5，Customized shell structure.
6，RTP/CTP is optional.
7，IP65 protection class is optional.
| ?manufacturer | Eastern Display |
| ?resolution ratio | 800*480 |
| ?joggle | RGB interface |
| ?attended mode | FPC |
| ?display type | 16.7M color tft lcd display |
| ?angle of view | Free |
| ?working voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 800cd/m2(custom) |
| ?working temperature | -30℃-80℃ |
| ?storage temperature | -35℃-85℃ |
| ?blind flange | Provide customized services such as AF/AG/AR. |
