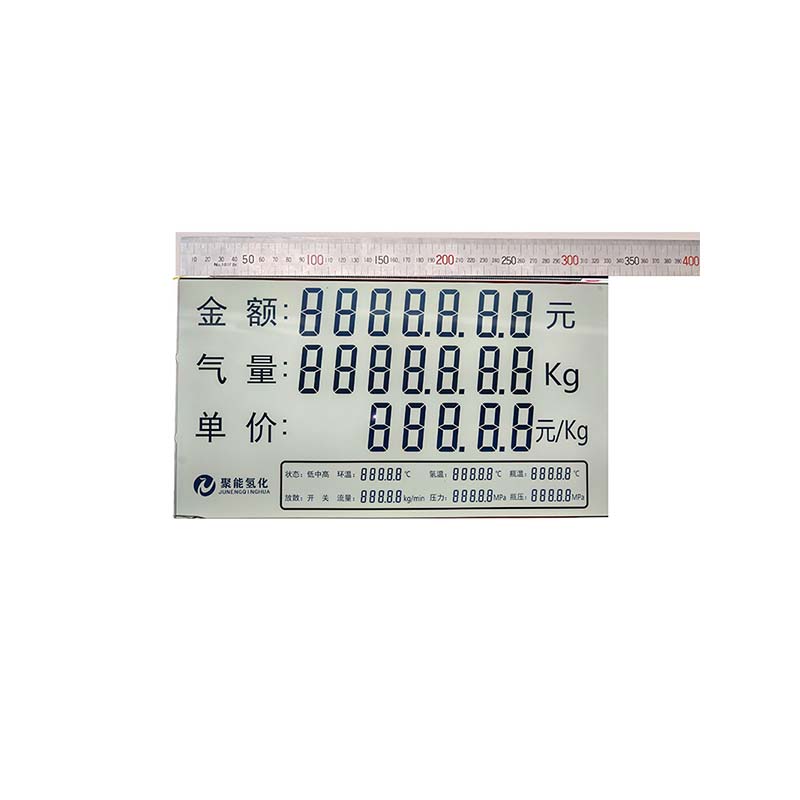

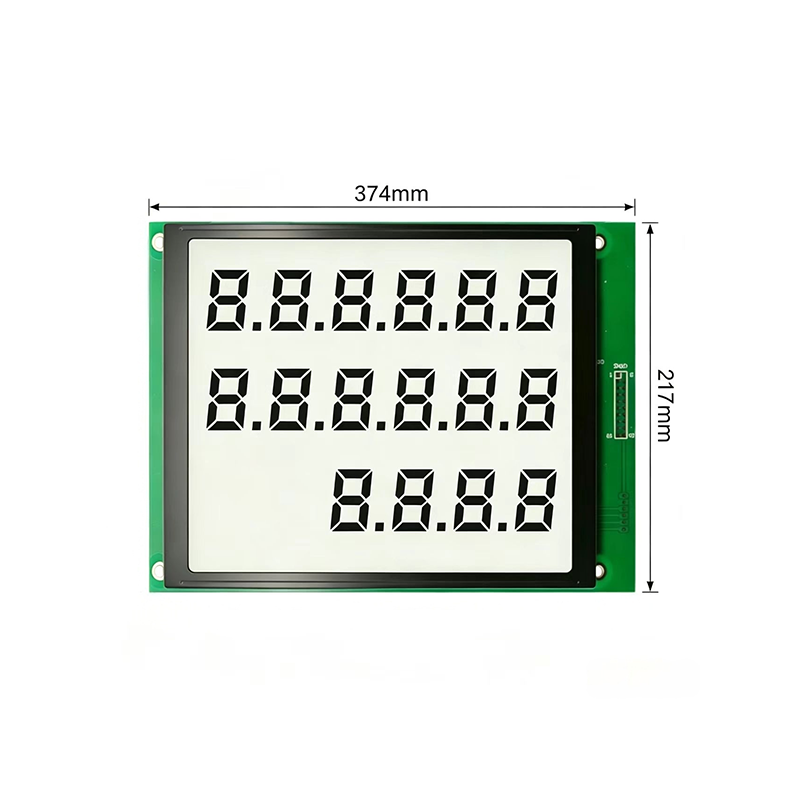

Ultra large segment LCD refers to a segmented LCD with a screen diagonal exceeding 10 inches or a long side exceeding 200 mm. It retains the advantages of ordinary segment LCDs, such as low power consumption and clear visibility under sunlight. However, this type of product imposes higher requirements on design, manufacturing, and driving.

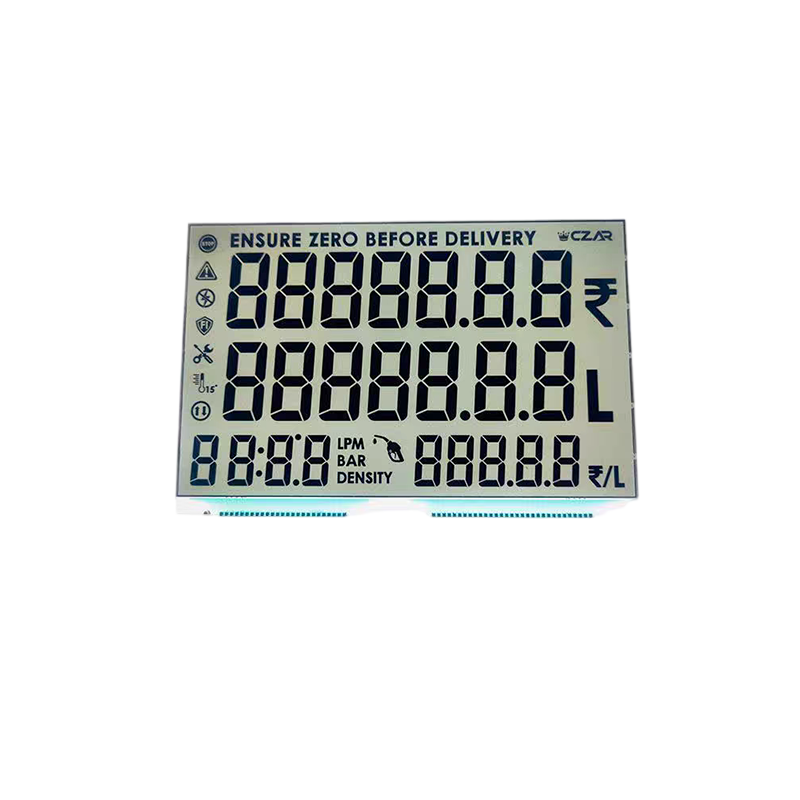

Ultra large segment LCDs are suitable for long-distance viewing scenarios. Typical applications include: large industrial instruments, such as display screens for boilers and generator sets, which require long-distance readability; displays on fuel dispensers and charging piles, which demand both long-distance readability and clear visibility under sunlight – the low power consumption advantage of this product meets the needs of such scenarios; large medical and laboratory equipment – this product generates no electromagnetic interference, making it suitable for sensitive working environments. The product can support multiple display modes, including TN, HTN, VA, and STN. Our company offers customized ultra-large-size segment LCDs in tailored dimensions and shapes, with capabilities to suit extreme outdoor environments, including wide-temperature operation, UV resistance, anti-glare performance, etc. Eastern Display’s custom products cover model numbers from EDC001 to EDC26088, accumulating over ten thousand models. All products in the series comply with RoHS 2.0 and REACH environmental requirements.
| Manufacturer | Eastern Display |
| Display mode | TN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 90-150° |
| Connection | PINS/FPC |
| Driver chip model | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | ANTI-GLARE /UV-resistant LCD |
Keywords：flexible lcd screen/lcd screen for pc case/7 inch lcd display/mini lcd display/round lcd/spi lcd/16 * 2 lcd display price/1602 lcd 3.3 v/1602 lcd arduino/ 1602 lcd display arduino/1602 lcd display/EDC21039DHC3P3/EDC22116SDC2P16/EDC20058VA?
